Point source Loudspeakers&Subs
* 1x12 inch low-frequency and 1x1.75inch compression driver;
* The wave guide design for 90-degree X 50-degree of horizintal and vertical using;
* Match with DSW series will constitute complete system.
SUM12
 Specification
Acoustic Performance
System 2-way Loudspeaker System
Frequency Range(-10dB) 55Hz-20kHz
Frequency Response(±3dB) 85Hz-18kHz
Dispersion Angle(-6dB) 90°x50°(H x V)
Rated Power 350W
Maximum Power 1400W
Sensitivity(1w/1m) 97dB
Maximum SPL 128dB
Loudspeakers
LF:1x12″
HF:1x1.75″
Nominal Impedance 8Ω
Connections 2 x NLT4 ±1

Physical Performance

Hoisting Way 11 Hoisting Point with M8
Size(WxDxH) 363 x 420 x600(mm)
Weight N.W: 21.3kg    R.W: 25kg

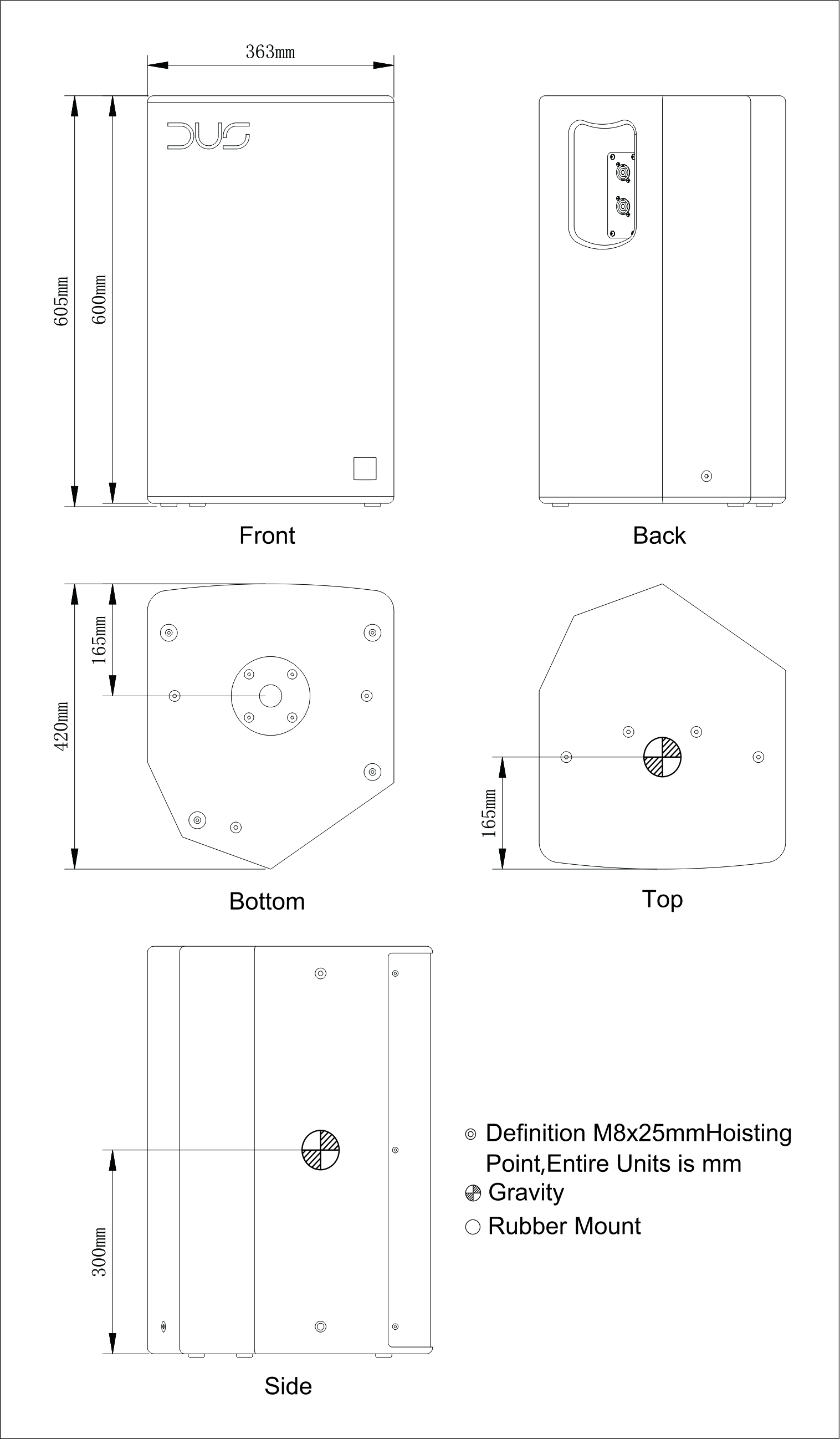

 Drawings
Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Recommended Speakers
 Download
File Description Userguide
SUM12 Product brochure for the SUM12. DOWNLOAD
