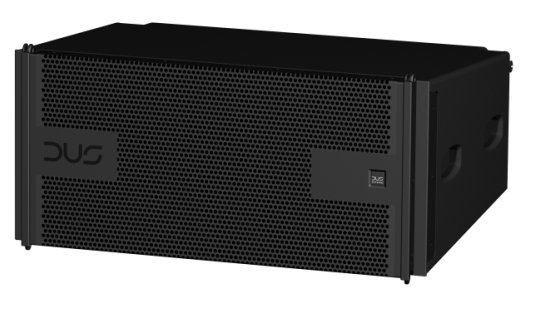

QX10| Acoustic Performance | |
| System | 2-way line array loudspeaker |
| Frequency Range(-10dB) |
60Hz-2.5kHz(LF)
800Hz-18kHz(HF) |
| Frequency Response(±3dB) |
70Hz-1.8kHz(LF)
900Hz-17.5kHz(HF) |
| Dispersion Angle(-6dB) | 100°x10°(H x V) |
| Rated Power | 500W(LF)/75W(HF) |
| Maximum Power | 2000W(LF)/300W(HF) |
| Sensitivity(1w/1m) | 100dB(LF)/107dB(HF) |
| Maximum SPL | 133dB(LF)/132dB(HF) |
| Loudspeakers |
LF:2x10″
HF:1x3″ |
| X-over | 1.5kHz/24dB/octave |
| Nominal Impedance | 8Ω(LF)/16Ω(HF) |
| Connections | 2xNLT4 ±1(LF)/±2(HF) |
|
Physical Performance |
|
| Hoisting Way | Hoisting Point with 4 |

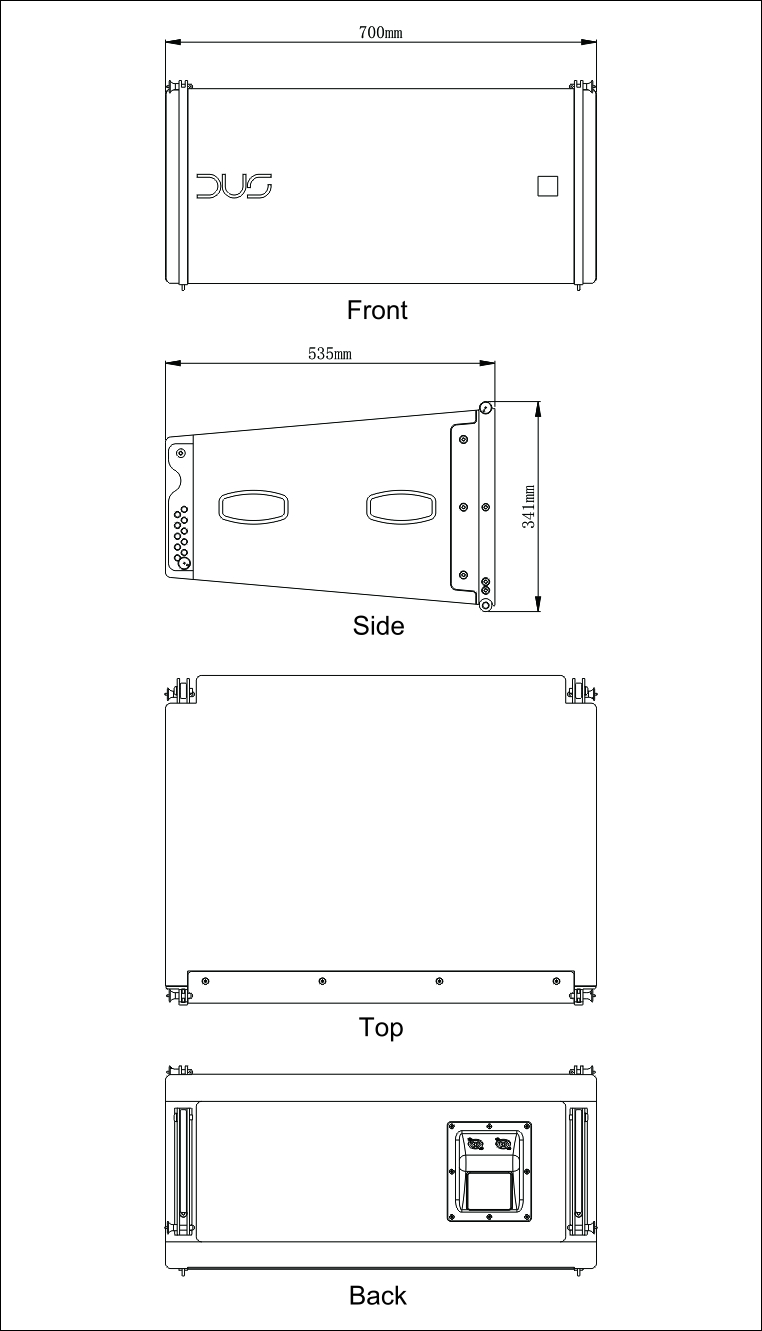

| Size(WxDxH) | 700 x 535 x341(mm) |
| Weight | N.W: 35kg R.W: 40.3kg |
 |
|---|
